API 602 Forged Steel Flange Gate Valve F304

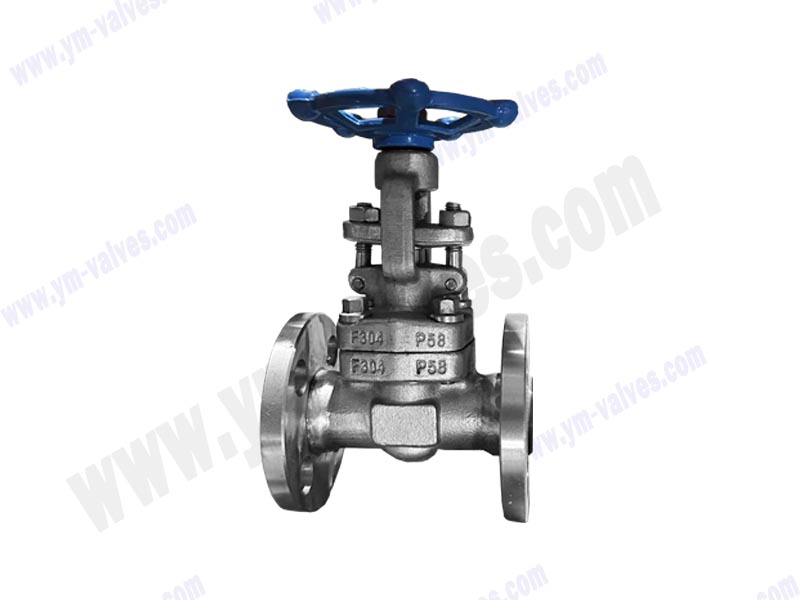

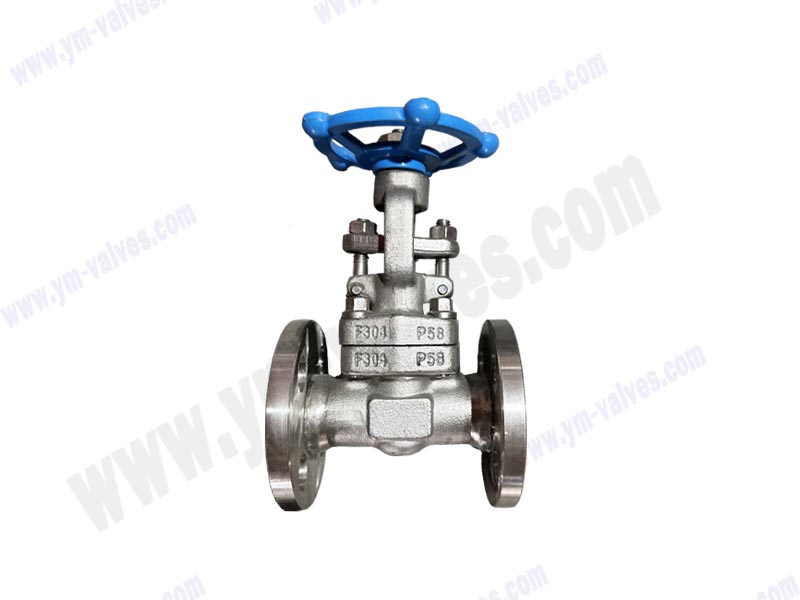

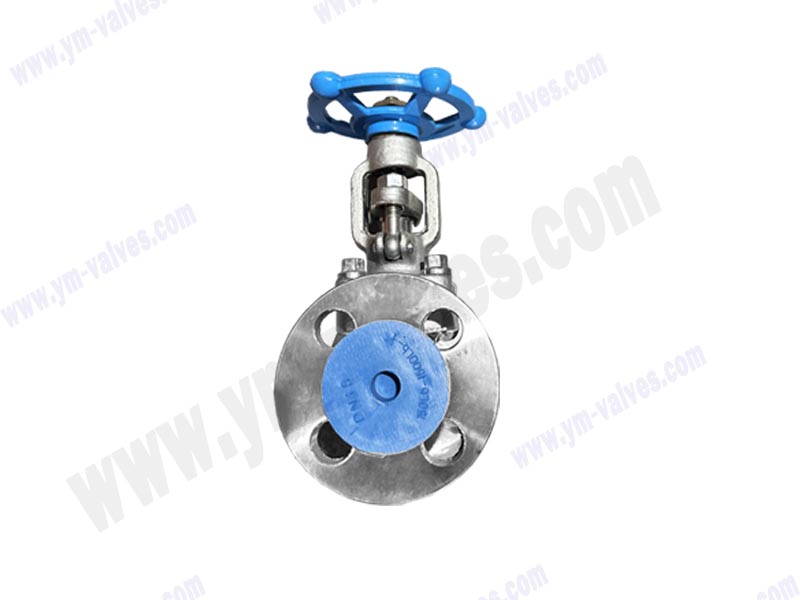

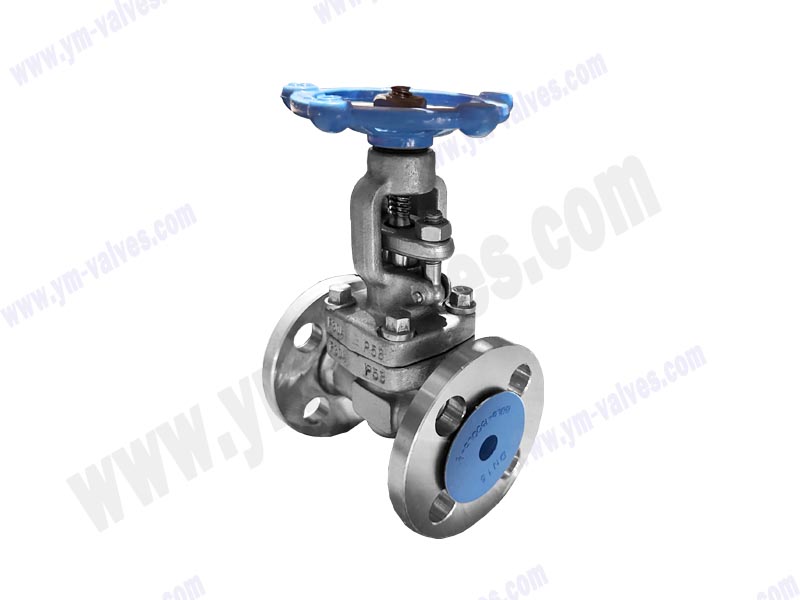

YUMING forged steel gate valve screwed and flanged ends are Bolted Bonnet, outside screw and yoke type, rising spindle & non-rising hand wheel construction, in size 1/2" (DN15) to 2" (DN50) to suit various critical,non-critical applications and pressure rating in 800 and 2500 class in Regular (Reduced) Port. Our ForgedGate Valves are available in Bolted Bonnet Design, Pressure Seal Bonnet Design, Welded Bonnet Design and Cryogenic Service.

YUMING manufactures Forge Steel Gate Valve threaded in a wide range of Body Materials like ASTM A 105-Forged Carbon Steel, ASTM A 182 F 304/304L/316/316L- Forged Stainless Steel 304/304L/316/316L, ASTM A 182 F 11/22-Alloy Steel to suit high temperature and pressure industrial application. For High Pressure & Temperature application Stellited F6 Face Seat & Disc available. Forged Steel Gate Valve available in Threaded End (BSP/ NPT Female), Socket Weld End, Butt Weld End, Weld Neck End.



Design & Testing International Standard of Forged Steel Gate Valves



Design Standard:

BS 5352/API 602 /ASME B 16.34

Inspection & Testing Standard:

BS EN ISO 12266 - 1 (BS 6755-l)/API 598/ ISO 5208

Flange To Flange Distance:

As Per ANSI B 16.10 / BS 5352/ API 602

Screwed- Threaded End to ANSI B 1.20.1

Socket Weld End to ANSI B 16.11

Flanged Ends as per ANSI B 16.5



Salient Features

Body & Bonnet made from high quality forging.

The Forgings are precision machined for high performance.

Leak Proof Body-Bonnet Joint With Spiral Wound Gasket.

Ground Finish Stem.

Self Aligning Two Piece Gland.

Back seating feature facilitates repacking of the stuffing box on line with the valve in fully open position.



Application Industries for Forged STEEL Gate Valve

Power Plants & Process Industries.

Petrochemical Plants & Refineries.

Fertilizers Plants.

Cement & Steel Industries.

Process & General Industries.

Sugar Industries & Distillery Plants.

Water, Steam, Gas, Oil & other Non-aggressive media.

Other application on request.

NPS	d	L	H	W	ΦS	T
Class800Lb
1/2"	10.5	79	158	100	Port size
3/4"	13	92	160	100	SW
1"	18	111	197	125	NPT
1 1/4"	24	120	228	160	RC
1 1/2"	29	120	246	160
2"	36.5	140	290	180
Class1500Lb
1/2"	10.5	111	200	125	Port size
3/4"	13	111	200	125	SW
1"	17.5	120	220	160	NPT
1 1/4"	24	120	255	160	RC
1 1/2"	29	140	290	180
2"	36.5	178	316	200
Class2500Lb
1/2"	10.5	186	345	250	Port size
3/4"	13	186	345	250	SW
1"	17.5	186	345	250	NPT
1 1/4"	24	228	460	280	RC
1 1/2"	29	228	460	280
2"	36.5	276	520	280
