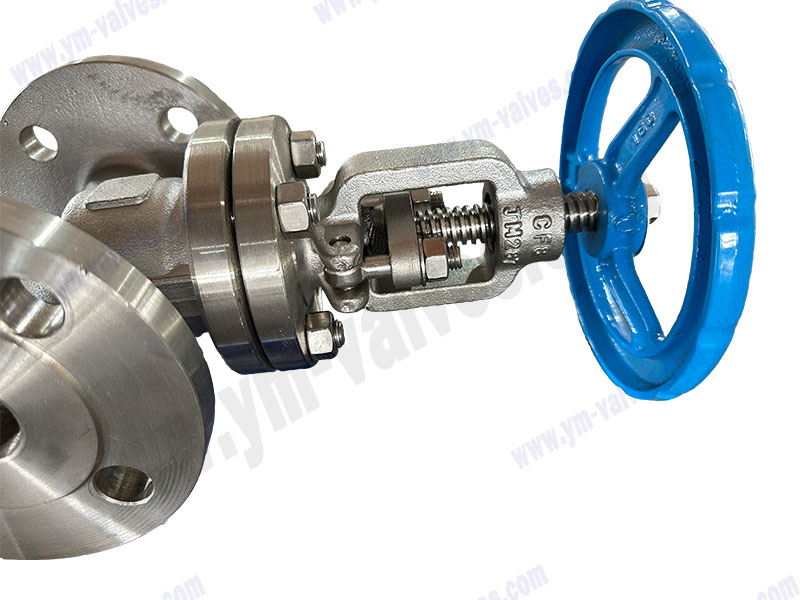

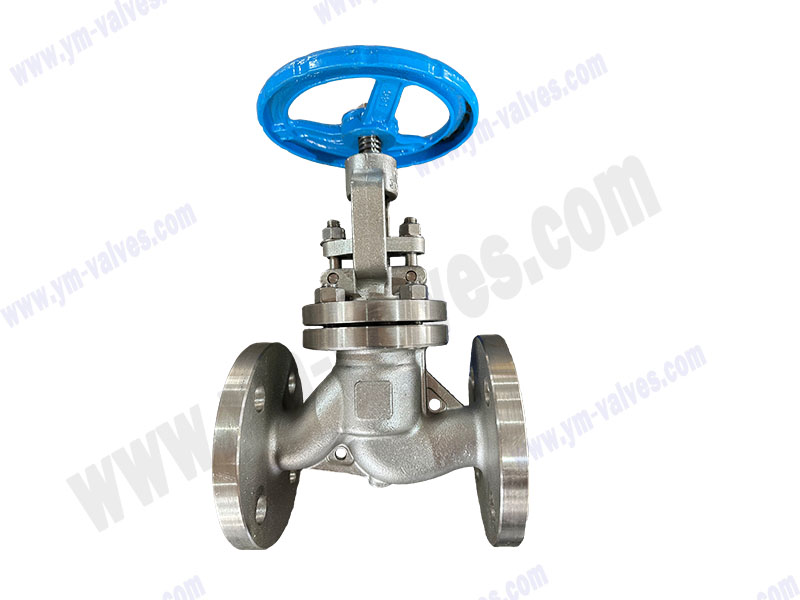

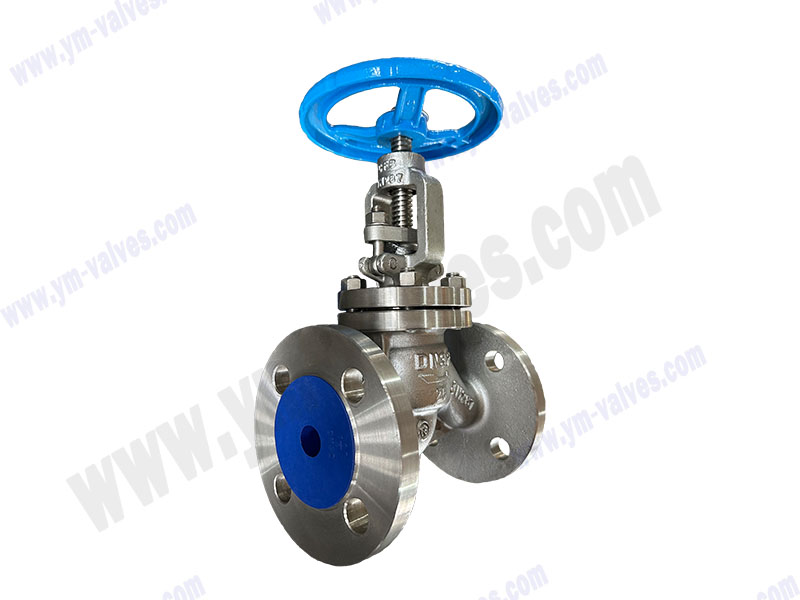

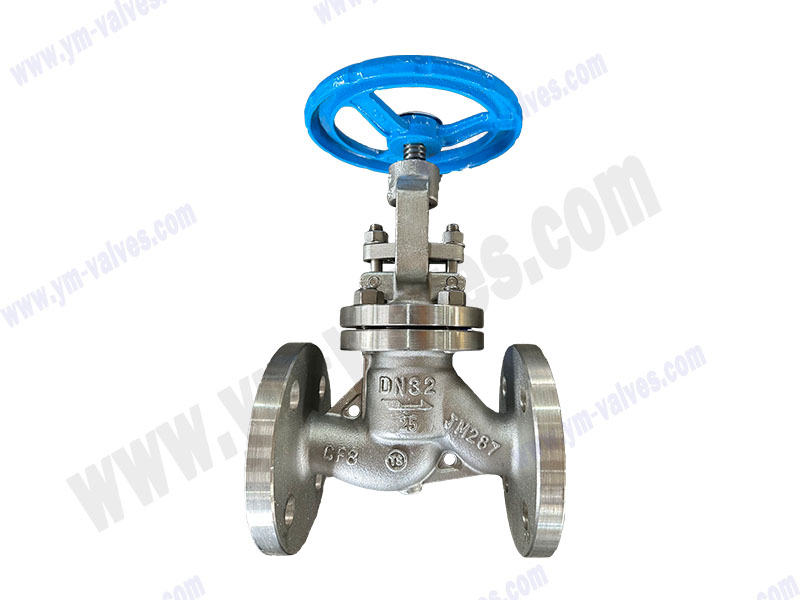

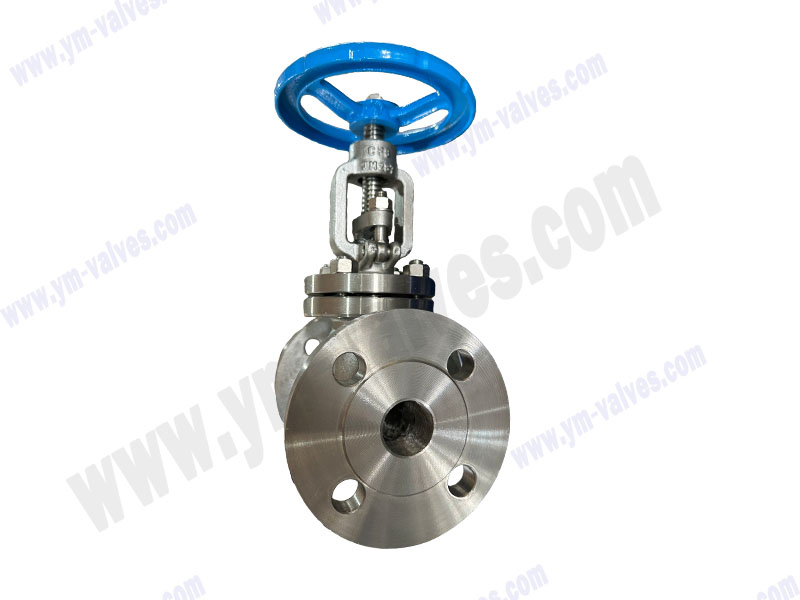

Forged steel flange globe valve

Size Range::1/2”-2”
Pressure: :Class150-Class2500
Body Materials:ASTM F304/F316
Connection end::Flange
Temperature::-29°C to 425°C
Design Standard: :API 602

We're here to help:
Easy ways to get the answers you need.

chat now send message

Product description
Technical parameters

Design & Testing International Standard of Forged Steel Globe Valve
Design Standard:

BS 5352/API 602/ASME B 16.34

Inspection & Testing Standard:

BS EN ISO 12266-1(BS 6755-l)/API 598/ISO 5208

Flange To Flange Distance:

As Per ANSI B 16.10 / BS 5352 / API 602
Screwed-Threaded End to ANSI B 1.20.1
Socket Weld End to ANSI B 16.11
Flanged Ends as per ANSI B 16.5

PRESSURE	NPS	A - RF (in)	A - RJ (in)	B (in)	C (in)	H (in)	FIGURE
ASME 150	1/2"	4.25	N.A.	0.39	3.5	7.7	1I - 303
	3/4"	4.63	N.A.	0.55	3.5	7.7	1I - 304
	1"	5	5.5	0.66	3.8	8.9	1I - 305
	1 - 1/2"	6.5	7	1.14	5.4	10.7	1I - 307
	2"	7.99	8.49	1.38	6.8	11.8	1I - 308
ASME 300	1/2"	6	6.44	0.35	3.5	7.7	1I3 - 303
	3/4"	7.01	7.51	0.51	3.5	8	1I3 - 304
	1"	7.99	8.49	0.66	3.8	8.9	1I3 - 305
	1 - 1/2"	9.02	9.52	1.14	5.4	10.6	1I3 - 307
	2"	10.51	11.13	1.38	6.8	12.6	1I3 - 308
ASME 600	1/2"	6.5	6.44	0.35	3.5	7	1I6 - 303
	3/4"	7.52	7.52	0.51	3.5	8	1I6 - 304
	1"	8.5	8.5	0.66	3.8	9.2	1I6 - 305
	1 - 1/2"	9.49	9.49	1.14	5.4	10.6	1I6 - 307
	2"	11.5	11.62	1.38	6.8	12.6	1I6 - 308
ASME 1500	1/2"	8.5	8.5	0.35	3.5	7.5	15FI 303
	3/4"	9.02	9.02	0.55	3.8	9.1	15FI 304
	1"	10	10	0.55	5.4	10.6	15FI 305
	1 - 1/2"	12.01	12.01	1.02	6.8	12.4	15FI 307
	2"	14.49	14.61	1.34	6.8	14	15FI 308
ASME 1500	1/2"	8.5	8.5	0.47	3.8	9.4	15F 303
	3/4"	9.02	9.02	0.57	5.4	11	15F 304
	1"	10	10	0.75	6.8	11.6	15F 305
	1 - 1/2"	12.01	12.01	1.22	6.8	14.6	15F 307
	2"	14.49	14.61	1.5	9.2	18.3	15F 308
ASME 2500	1/2"	10.39	10.39	0.43	5.4	12.2	25RF 303
	3/4"	10.75	10.75	0.57	5.4	12.4	25RF 304
	1"	12.13	12.13	0.75	6.8	13.8	25RF 305
	1 - 1/2"	15.12	15.24	1.1	9.2	17.7	25RF 307
	2"	17.76	17.88	1.5	12.6	18.1	25RF 308
