ANSI Swing Stainless steel flange Check Valve

  • Size:2"~24"(DN50-DN600)
  • Body Materials:Stainless steel /CF8/CF8M/SS304/SS316
  • Standard:ANSI,API,DIN,BA,JIS,GB
  • Temperature:-20℃ to 200℃
  • Sealing structure :Soft seal /hard seal
  • Pressure:PN16, PN25

We're here to help:
Easy ways to get the answers you need.

  • Product description
  • Technical parameters
  • Inquiry



Swing Check Valve



The Major Parts Material

Name Material
2 Body Stainless steel ,WCB,CF8/304,CF3/304L,CF8M/316,CF3M/316L
3 Seat Natural rubber,EPDM,NBR
4 Stem Stainless steel ,2Cr13,CF8/304,CF3/304L,CF8M/316,CF3M/316L
5 Disc Stainless steel ,WCB,CF8/304,CF3/304L,CF8M/316,CF3M/316L
6 Nut Stainless steel ,2Cr13,CF8/304,CF3/304L,CF8M/316,CF3M/316L

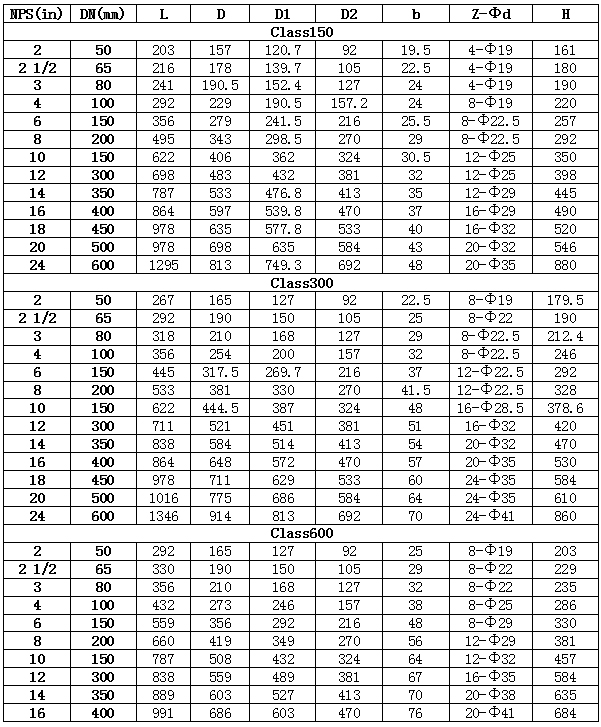

Main Connection Dimension
