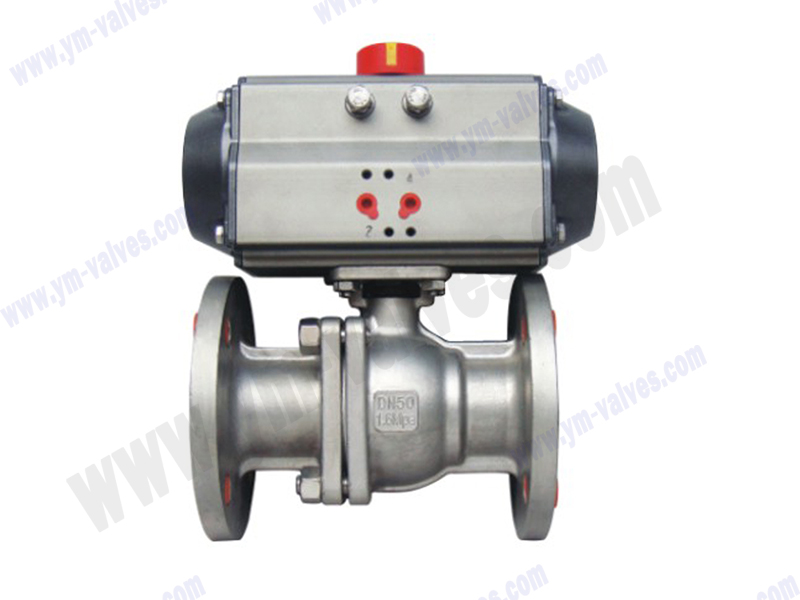

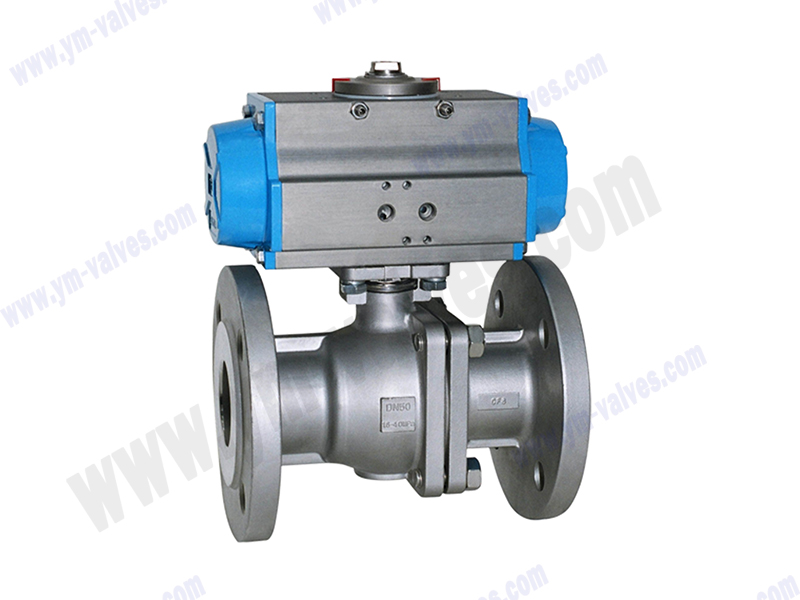

Pneumatic Floating Ball Valve

  • Size:1/2”-10”
  • Pressure:PN16-PN40
  • Body Materials:Stainless Steel ,CF8,CF8M
  • Ball Materials:SS304, SS316
  • Seal Materials:PTFE
  • Connection:flange

We're here to help:
Easy ways to get the answers you need.

  • Product description
  • Inquiry

Valve parameters:

Size:1/2”-10”

Pressure:PN16-PN40

Body Materials:Stainless Steel ,CF8,CF8M

Ball Materials:SS304, SS316

Seal Materials:PTFE

Connection:flange

Drive type:Pneumatic

Structure type:floating

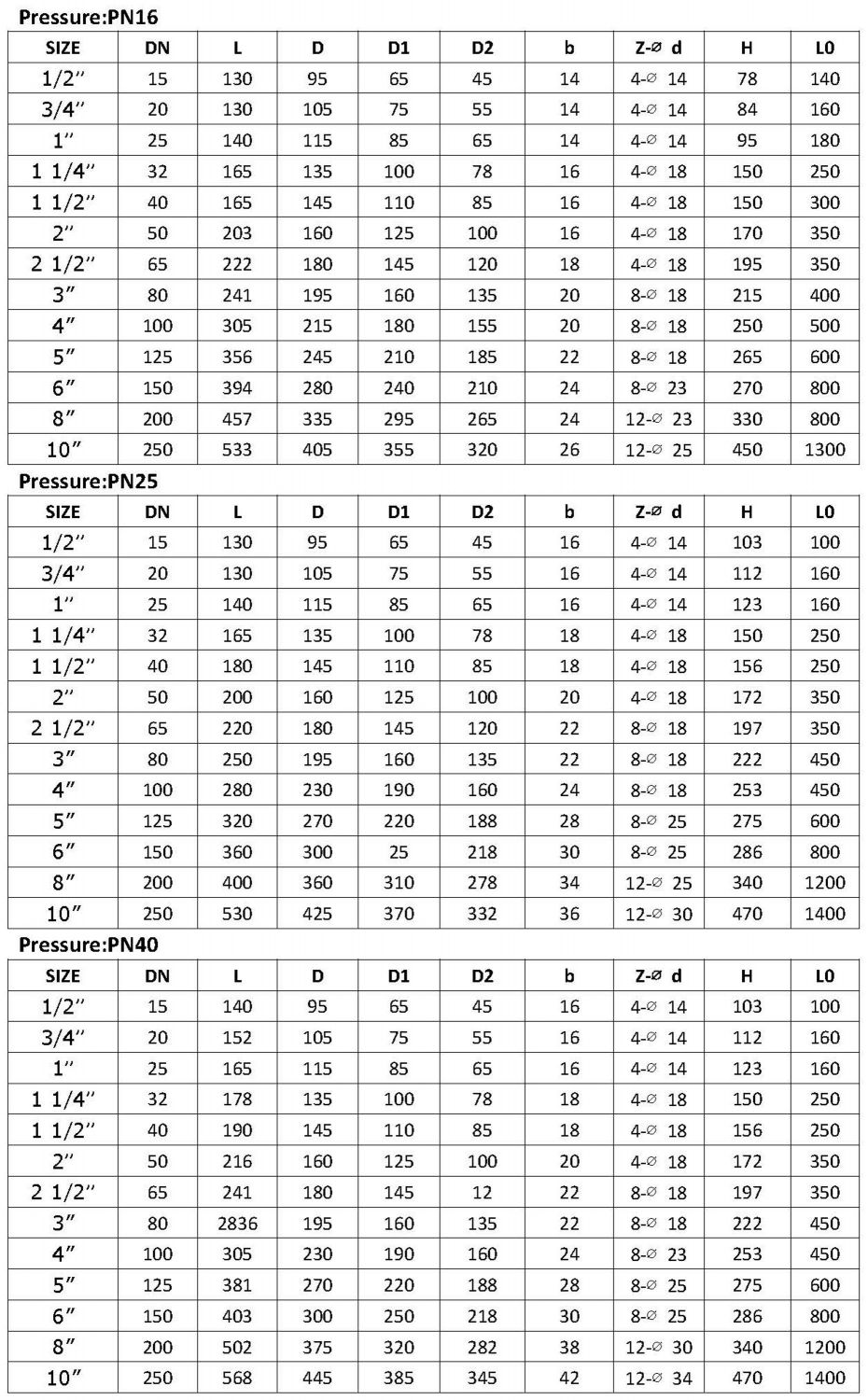

Drawings and dimensions:


Features:

1. Fluid resistance is small, the resistance coefficient of fish length loudness equal to the pipeline;

2. Simple structure, small size, light weight;

3. Tight and reliable, good sealing, the vacuum system is also widely used;

4. Easy to operate, switch quickly, easy to control;

5. Easy maintenance, ball valve structure is simple, easy replacement demolition;

6. In the fully open or fully closed, the sealing material and media isolation, media will not cause erosion of the sealing material.
