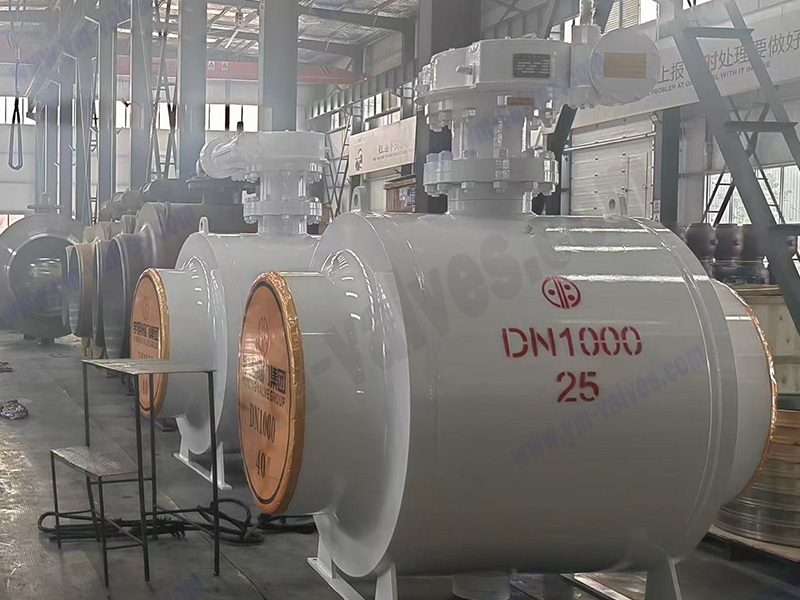

Fully Welded Ball Valve

  • Size Range::DN50~DN1600)
  • Pressure::Class150--Class300(PN16-PN40)
  • Applicable temperature: :-29℃~200℃
  • Connection end::BW
  • Operation::Manual,Pneumatic,Electric,Hydraulic
  • Material::Carbon steel,Low temperature steel,Stainless steel etc.

We're here to help:
Easy ways to get the answers you need.

  • Product description
  • Inquiry
Product Usage

Fully Welded ball valves with integral welded valve bodies can effectively avoid external leakage. Welded ball valve is widely used in various fields, its superior quality and high performance stability is ordinary cast steel ball valve can not reach, all-welded ball valve service life is far greater than cast steel ball valve, all-welded ball valve is widely used in city gas, city heating, petrochemical, shipbuilding, steel, pressure regulating stations, power plants and other types of pipeline equipment.

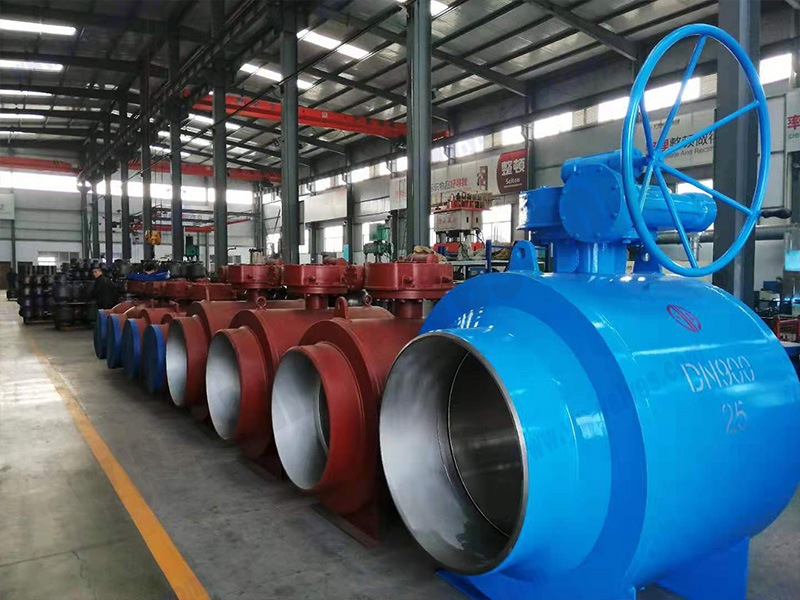

Welded ball valves are generally available in blue, yellow, grey, black and other colours. Transmission methods include handle, worm gear, pneumatic, electric, etc.

Construction Characteristics

  • Fully welded housing;
  • Trunnion mounted ball;
  • Spring-loaded seat rings;
  • Metallic or soft seals;
  • Double Block and Bleed”-version;
  • Full or reduced bore;
  • Flanged, welded or threaded connections;
  • Blow-out proof shaft;
  • Shaft seals replaceable under full pressure in open and closed position;
  • No static charging;
  • Maintenance-free bearings;

Applicable Standards

  • Design & Manufacture Conform with: API 6D/ ISO 14313, ASME B16.34
  • Connection Dimension Conforms with: ASME B16.25, DIN EN 12627
  • Fire Resistance Design Conforms with: API 607/ISO 10497
  • Inspection & Test Conforms with: API 6D, ISO 5208, API 598
  • Material Conforms with: ISO 15156
Materials of parts
1 Body 12 Ball lubricating bearing
2 Left-right body 13 Screw
3 Ball 14 Bonnet gasket
4 Seat 15 Support cover
5 Sealing ring 16 Die holder
6 O-ring 17 Packing
7 Stem 18 Terminal pad
8 Seat grease injection valve 19 Spring pin
9 Spring 20 Flat key
10 straight pin 21 Stem gasket
11 Blow-down vavle 22 Static-free spring

Materials of parts
Body A105/LF2/F304/F316/F304L/F316L/F11/F22/F51
Ball A105+ENP/LF2+ENP/F304/F316/F304L/F316L/F51
Seat A105+ENP/LF2+ENP/F304/F316/F304L/F316L/F51
Stem A105+ENP/LF2+ENP/F304/F316/F304L/F316L/F51
Sealing ring PTFE/NYLON/PEEK/TEFLON
O-ring VITON/NBR
Screw B7M/B8M/L7M/B16M
Support cover A105+ENP/LF2+ENP/F304/F316/F304L/F316L/F51
Die holder A105+ENP/LF2+ENP/F304/F316/F304L/F316L/F51
Spring 17-4PH/17-7PH/Inconel
Bearing 304+PTFE/316+PTFE
Gaske Flexible graphite+304/PTFE

*Materials could be choosed according to customers’ requirement & working condition.



Fully welded ball valve performance
  1. No maintenance, adjustment and lubrication, easy to install, reliable long-term operation at low running costs. The surface adopts spraying treatment technology, lustrous and beautiful, which has been in the leading level in China.
  2. The surface is sprayed with plastic treatment technology, which has a beautiful lustre and is at the leading level in China. There will be no external leakage etc. The valve body is of welded construction, so the valve is light and easy to insulate.
  3. The operating handle can be removed and installed in a different direction.
  4. The valve seat is made up of a carbon fibre reinforced Teflon seal ring and a disc spring, so it is highly adaptable to changes in pressure and temperature and does not produce any leakage in the marked pressure and temperature range.
  5. The processing of the ball is followed by an advanced computerised tester, so the ball is processed with high precision.
  6. As the valve body material is the same as the pipe material, there will be no uneven stress and no deformation due to earthquakes and vehicles passing over the ground, and the pipe is resistant to ageing.
  7. Integral fully welded, equal and variable diameter channels, fixed and floating balls, double piston effect sealing system, automatic injected sealant type bearings.
  8. To prevent static electricity, the stem and ball and between the stem and stuffing box are equipped with steel balls and springs, which can keep all parts of the valve conductive to the valve body and let the current pass through the area, releasing static electricity. Not only to prevent fire, but also to prevent corrosion and to achieve a temporary cut-off for timely maintenance.
  9. The stem anti-disengagement function is because the stem is affected by the pressure inside the valve and always generates a disengagement force so the stem is designed as an anti-disengagement structure.
  10. Support with a low friction material thrust washer pushes the pressure against the stem so that the stem only acts as a torque transmitter.
Fully welded ball valve applications
  1. City gas: gas output pipeline, main line and various branch supply pipelines, etc.
  2. Central heating: large heating equipment output pipelines, main lines and branch lines.
  3. Heat exchangers: pipelines and various circuits opening and closing.
  4. Steel plants: various fluid pipelines, waste gas selective discharge pipelines, gas and heat supply pipelines, fuel supply pipelines.
  5. Various industrial equipment, various heat treatment pipelines, various industrial gas and heat pipelines.

Full bore
DN(mm) d D D1 L W
200 200 219 359 530 350
250 250 273 426 550 350
300 300 325 508 686 350
350 350 377 600 762 350
400 400 426 670 840 400
500 495 530 808 1067 400
600 590 630 960 1143 520
700 685 720 1110 1345 520
800 779 820 1240 1524 590
900 874 920 1390 1727 590
1000 976 1020 1550 1840 800
1200 1166 1220 1860 2100
1400 1360 1420 2220 2680

Standard diameter
DN(mm) d D D1 L W
200 150 219 273 400 320
250 200 273 351 530 350
300 250 325 426 550 350
350 300 377 510 686 350
400 350 426 600 762 350
450 350 478 600 762 350
500 400 528 670 840 400
600 495 630 808 1067 400
700 590 720 960 1345 520
800 685 820 1110 1524 520
900 779 920 1240 1727 590
1000 874 1020 1390 1840 590
1200 976   1550 2100
1400 1166   1900 2200
