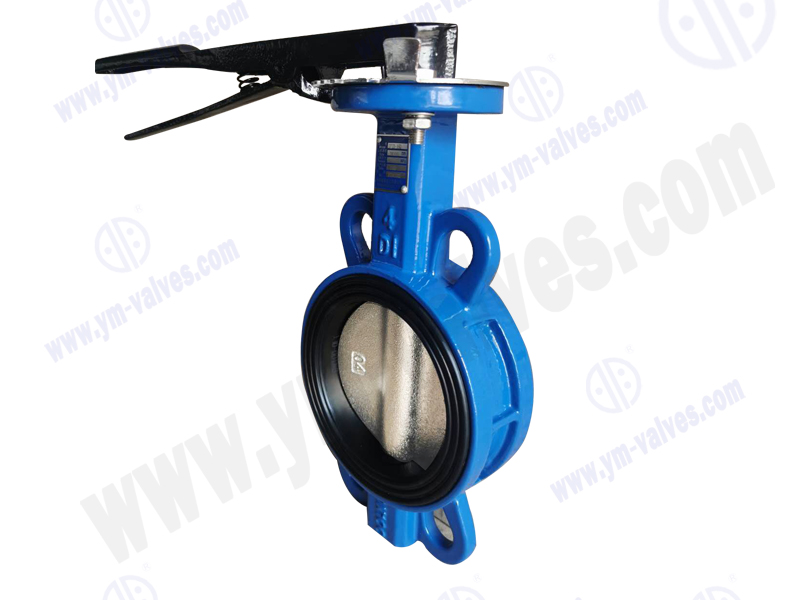

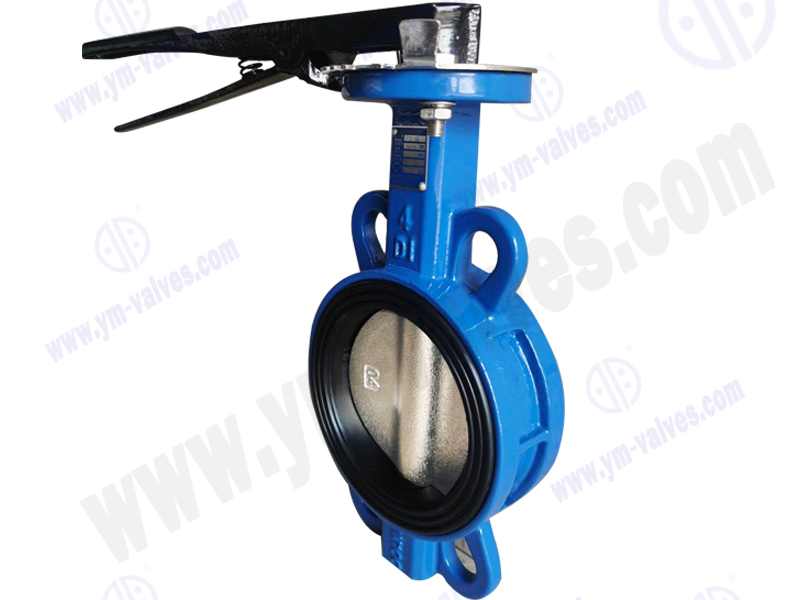

wafer soft seal butterfly valve

Yuming Valve Group manufactures centerline soft seal wafer butterfly valves, widely adopted in water treatment and municipal water supply projects. The centerline (concentric) design features compact lightweight construction and low operating torque. The elastomer soft seat provides bubble-tight shutoff with reliable corrosion resistance and long service life. Wafer type installation saves space, easy to mount between pipe flanges. Our wafer butterfly valves are commonly used for water treatment, water supply, drainage and sewage pipeline systems. Multiple sizes and material options are available. Relevant certifications can be provided, and customized specifications are supported based on your working conditions.

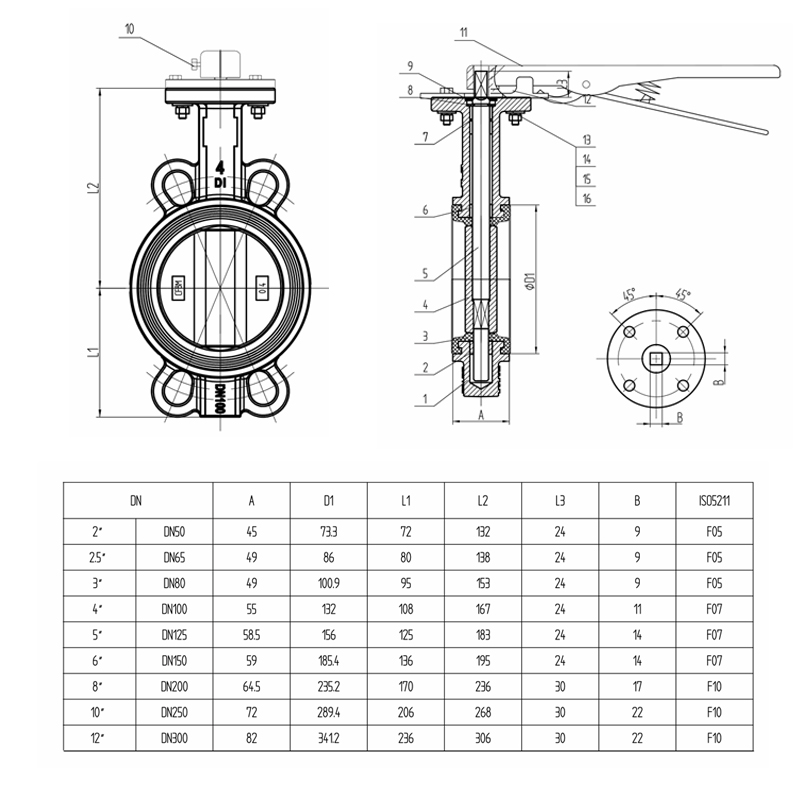

Introduction of new wafer butterfly valve parameters

1. The valve body adopts a new type of ductile iron material, which has good cutting performance, casting performance, vibration damping and wear resistance, and has excellent mechanical properties;

2. The structure adopts soft backrest. Compared with the traditional hard backrest, the soft backrest has good elasticity, easy disassembly and maintenance, and the overall torque of the valve is greatly reduced, and the switch is lighter;

3. The integral valve plate adopts a pinless structure. When replacing the valve seat valve plate, repair and replacement can be completed without any external professional tools, which greatly reduces the cost of later use and repair and replacement;

4. With strong interchangeability of parts, after a long-term structure and material improvement, the standard of this new type of butterfly valve is more unified, and the parts can be mutually interoperable, which helps to reduce product costs; each part can be freely exchanged under the same size;
