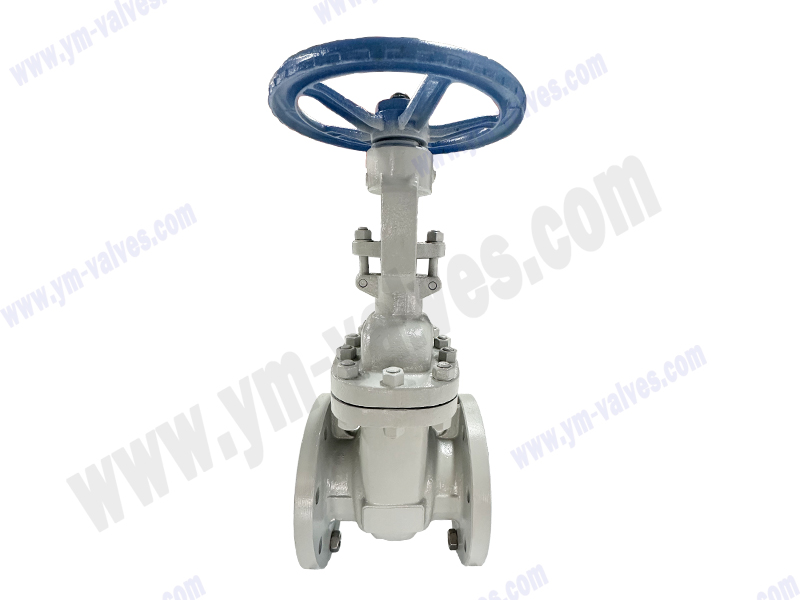

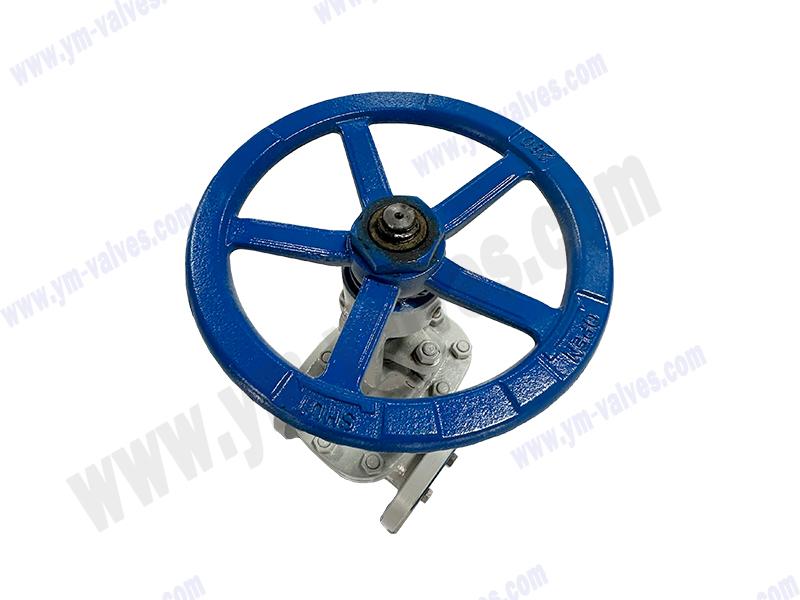

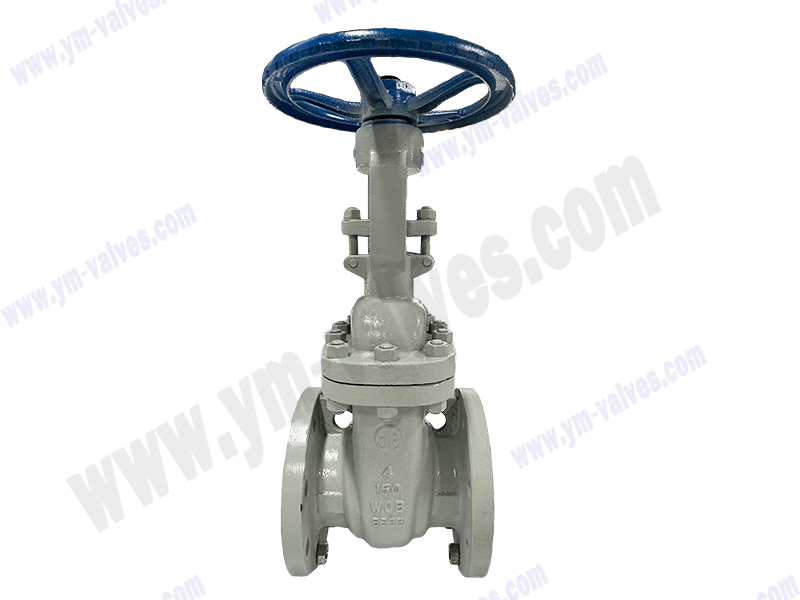

Yuming Valve Group's AMSE-certified valve factory in China.This flanged American‑standard cast steel gate valve is designed and manufactured in accordance with ANSI standards, suitable for on‑off service to fully open or fully close the pipeline medium. It cannot be used for flow regulation.
5.Inspection and test: API 598

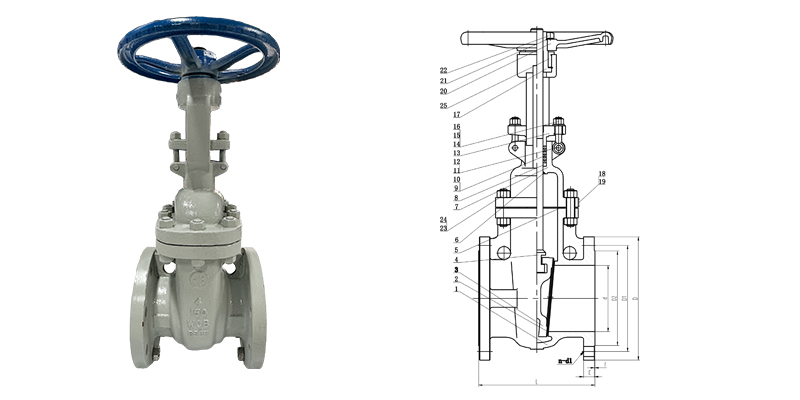

| NO. |
PART NAME |
MATERIAL |
NO. |
PART NAME |
MATERIAL |
| 13 |
Gland Flange |
WCB |
25 |
Gland Nut |
S.S |
| 12 |
Split |
CS |
24 |
Nut |
#45 |
| 11 |
Pin |
SS |
23 |
Bolt |
#45 |
| 10 |
Packing |
PTFE |
22 |
Lock Nut |
CS |
| 9 |
Packing |
PTFE |
21 |
Gasket |
CS |
| 8 |
Packing Seat |
WCB |
20 |
Hand wheel |
KTH330 - 08 |
| 7 |
Cover |
WCB |
19 |
Escutecheon Pin |
SS |
| 6 |
Back Face |
13Cr |
18 |
Nameplate |
SS |
| 5 |
Gasket |
304+Graphite |
17 |
Stem Nut |
Copper Alloy |
| 4 |
Stem |
20Cr13 |
16 |
Gasket |
CS |
| 3 |
Wedge |
WCB |
15 |
Nut |
304 |
| 2 |
Seat Face |
WCB |
14 |
Eye Bolt |
#45 |
| 1 |
Body |
WCB |
|
|
|
Product Features
Standard‑Compliant Structure:
Manufactured per ANSI standards, flange ends conform to ASME B16.5, with strong interchangeability for international piping systems.
Diversified Body Material:
Optional WCB carbon steel / SS stainless‑steel body, meeting anti‑corrosion requirements of different working media.
Full‑Bore Design:
Straight‑through full bore minimizes flow resistance and pressure drop inside pipeline.

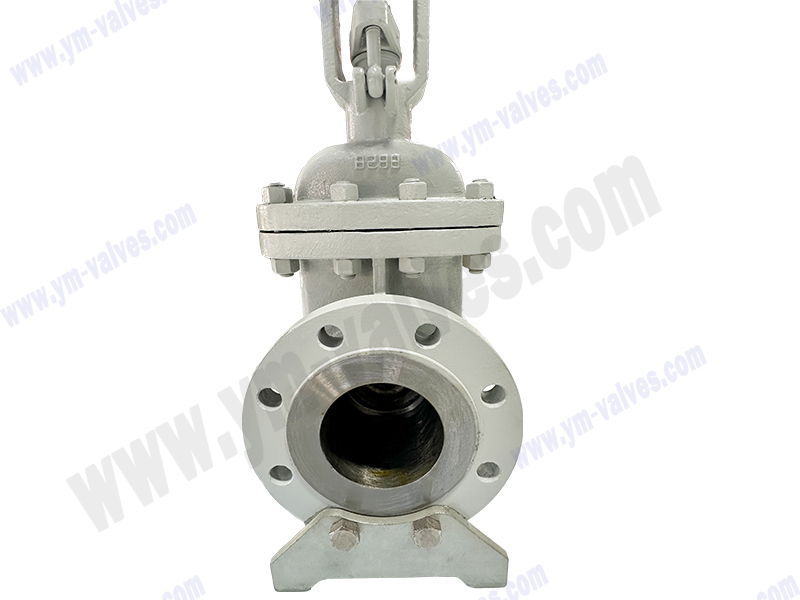

Flanged Connection End:
Flanged‑end connection facilitates on‑site installation, disassembly and routine maintenance, delivers stable sealing performance.
Complete Specifications:
Size: 2''‑36''；Pressure: Class150‑Class600, covers most general industrial working conditions.
Advantages
✅ Low Operating Resistance
Straight flow path brings minimal fluid resistance, saving system energy consumption.
✅ Excellent Sealing Performance
Precision‑machined wedge gate and seat surface, achieves reliable bi‑directional tight shut‑off.
✅ Long Service Life
High‑quality cast steel body, good mechanical strength and pressure‑bearing capacity, resistant to impact.
✅ Easy Maintenance
Standardized spare‑part dimension, convenient for on‑site inspection and component replacement.
✅ Wide Application Compatibility
Works for water, oil, steam, gas and other common media in industrial pipelines.
