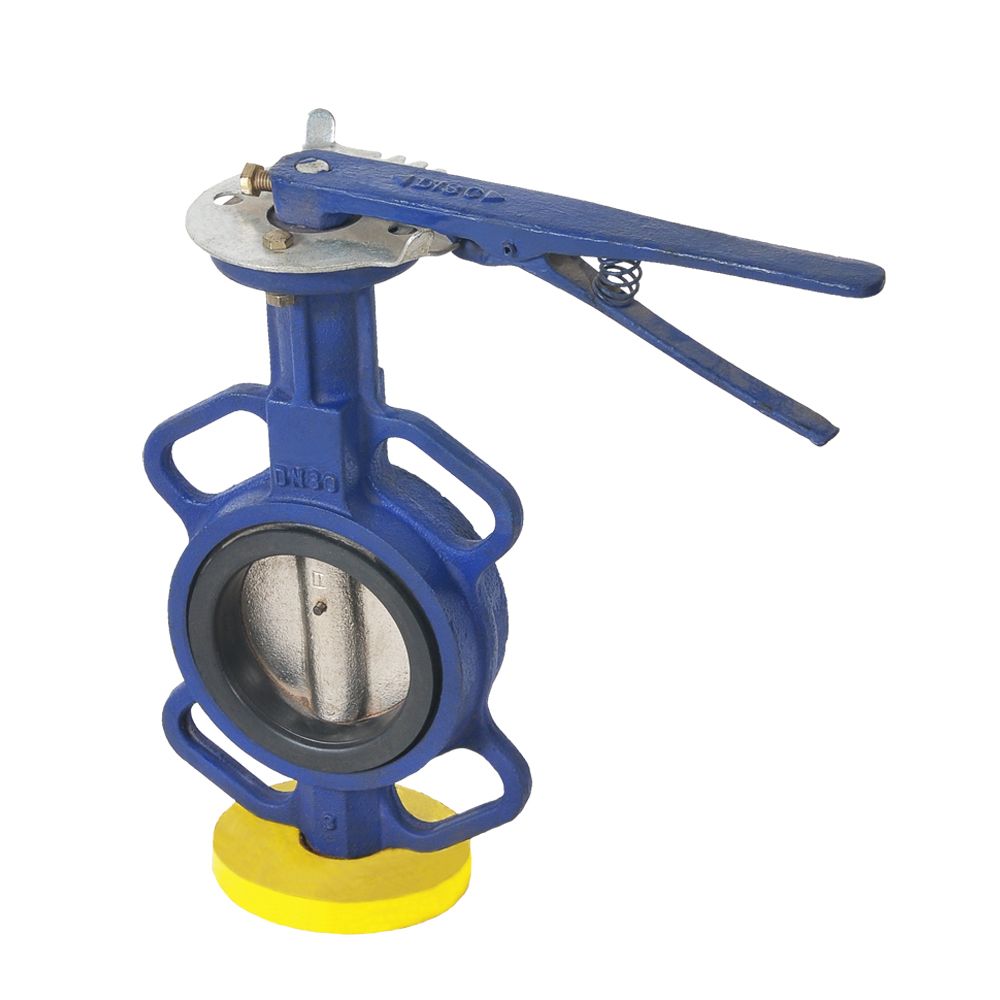

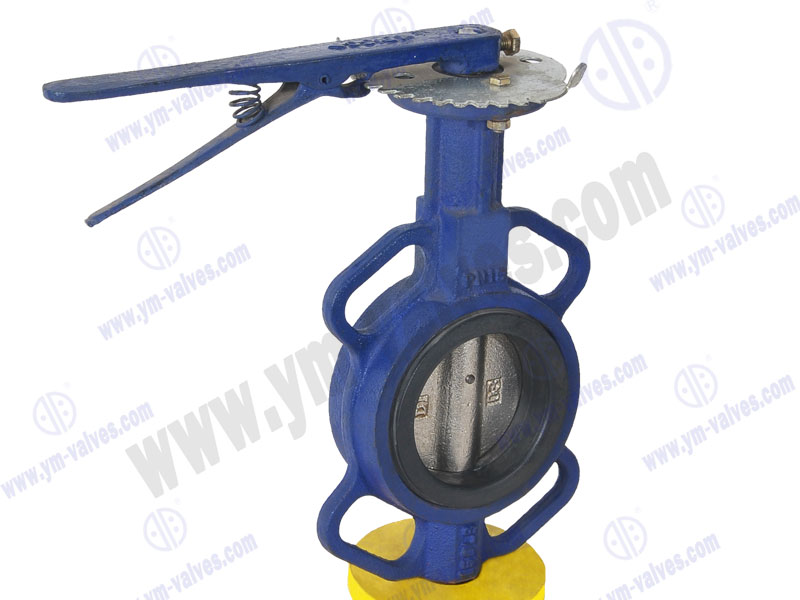

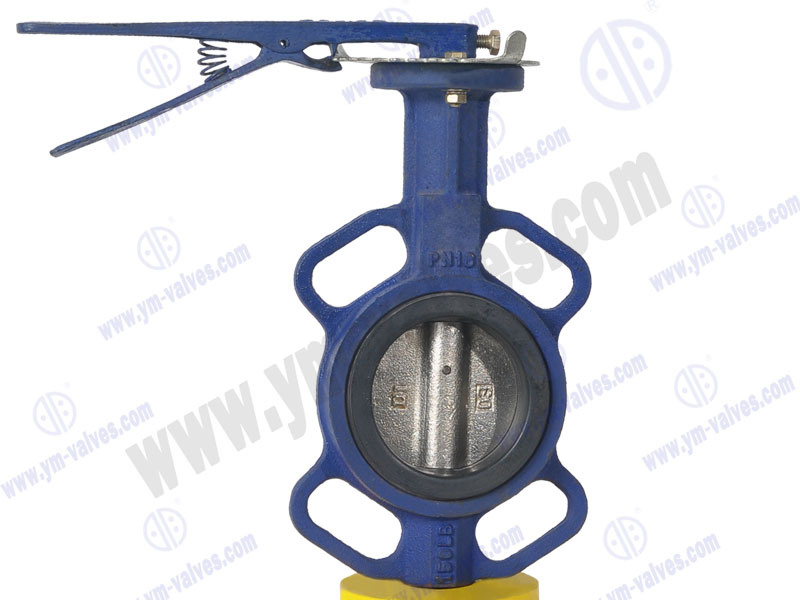

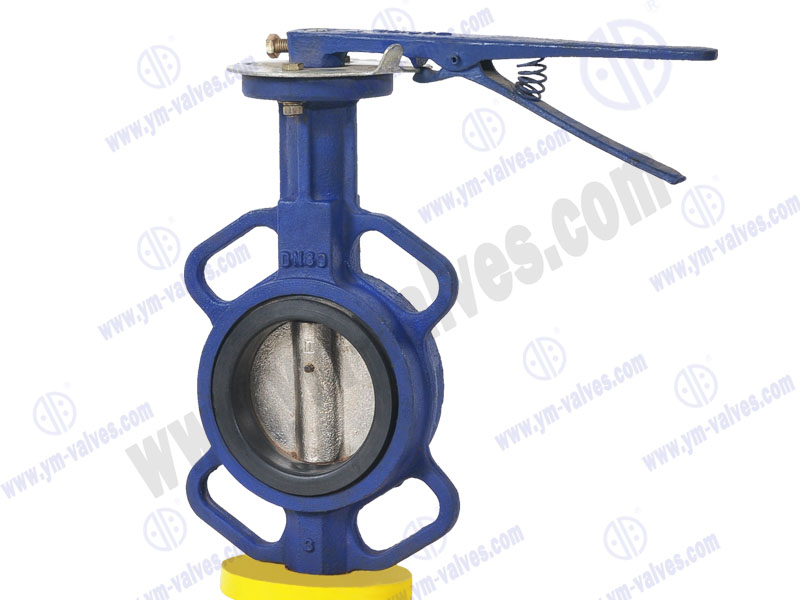

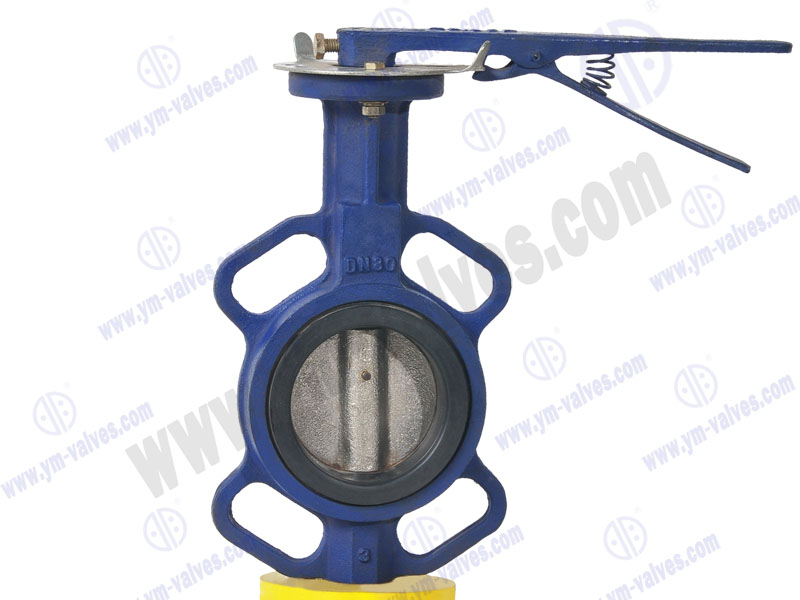

Wafer Universal Butterfly Valve

  • Size Range:1 1/2"~24"(DN40~DN600)
  • Pressure:PN10, PN16, Class150
  • Body Materials:Ductile Iron
  • Seat Materials:NBR, EPDM, VITON, PTFE
  • Disc Materials:Ductile Iron, WCB, CF8,CF8M, Al-bronze C958
  • Stem Materials:SS416, SS304, SS316

We're here to help:
Easy ways to get the answers you need.

  • Product description
  • Technical parameters
  • Inquiry

Wafer universal butterfly valve Features
●24 months guarantee
●Zero Leakage
●Bi-Directional
●Low Torque,long life cycle
●360°polished disc assures positive on-off
●Epoxy coated body,smooth surface
●Various kinds of materials,applicable to different medium


Adoptive Standards:
Valve Design: API 609, MSS SP-67
Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1
Pressure Test: API 598
Flange Drilling: ANSI B16.1 class150, BS4504 PN10/PN16, DIN2501 PN10/PN16
Top Flange: ISO5211

Standard Test:
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.

Application:
 ● Water Treatment Plant
 ● Drilling Rigs
 ● Paper Industry
 ● Gas Plant
 ● Sugar Industry
 ● Cooling Water Circulation
 ● Breweries
 ● Heating & Air Conditioning
 ● Chemical Industry
 ● Pneumatic Conveyors
 ● Waste Effluent Treatment Plant
 ● Compressed Air

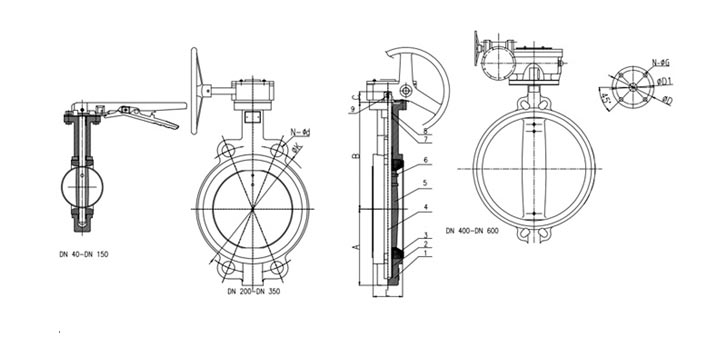

SIZE A B C d0 PCD N-Q ISO5211 ∅K ∅E N-∅d1 B1×B1 L
DN40 120 57 33 12.6 110 4-19 F05 65 50 4-7 9×9 26
DN50 140 65 43 12.6 125 4-19 F05 65 50 4-7 9×9 26
DN65 150 75 46 12.6 145 4-19 F05 65 50 4-7 9×9 30
DN80 158 93 46 12.6 160 8-19 F05 65 50 4-7 9×9 30
DN100 176 109 52 15.77 180 8-19 F05 90 70 4-10 11×11 30
DN125 190 125 56 18.92 210 8-19 F07 90 70 4-10 14×14 30
DN150 211 140 56 18.92 240 8-22 F07 90 70 4-10 14×14 40
DN200 235 170 60 22.1 295 8-22 F07 125 102 4-12 17×17 40
DN250 265 205 68 28.45 350 12-22 F10 125 102 4-12 22×22 40
DN300 305 238 78 31.6 400 12-22 F10 125 102 4-12 22×22 40
DN350 368 267 78 31.6 460 16-22 F10 125 102 4-12 22×22 40
DN400 400 309 102 33.15 515 16-26 F14 175 140 4-18 27×27 50
DN450 422 328 114 37.95 565 20-26 F14 175 140 4-18 27×27 70
DN500 480 361 127 41.12 620 20-26 F14 175 165 4-18 36×36 80
DN600 562 459 154 50.62 725 20-30 F16 210 254 4-23 36×36 80
