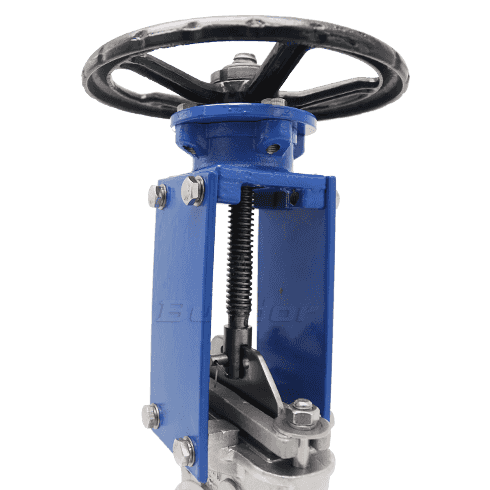

SS Knife Gate Valve

  • 【Size Range】: DN50-450
  • 【Pressure】:150LB
  • 【Body Materials】:WCB/Cast Iron

We're here to help:
Easy ways to get the answers you need.

  • Product description
  • Inquiry


ADVANTAGES

Product Features

Low torque operation

Rubber encapsulated wedge

Clockwise closing direction

Fusion bonded epoxy coated inside and outside


Product Advantage

1.The valve body is made of precision casting, the precise geometry makes the north of the valve body not need any finishing, so as to ensure the tightness of the valve.

2.The body is made of ductile iron QT450-10, shall not be broken by transportation, collision or installation.

3.The valve body adopts streamlined design, so that the medium moves straight in the valve cavity, the flow resistance is smaller and the flow area is larger.

4.The valve adopts bidirectional sealing design, and the installation direction and medium flow direction are not limited.

5.The inside and outside of the valve bodyadopt powder epoxy resin electrostatic coating, which can effectively prevent corrosion and rust caused by contact between valve body and medium, and can be used in sewage system.

6.The valve plate adopts high-quality overall rubber coating, the use of advanced technology makes the vulcanized rubber vulcanization after the valve plate to ensure accurate geometry, and the rubber and ductile iron gate connection is firm and not easy to fall off with good elastic memory, so as to ensure the stable performance of the valve sealing.

7.The bottom of the valve body adopts no groove design, and does not cause accumulation of impurities or dirt, thereby effectively avoiding the leakage caused by impurities scratching of the valve seat.

8.The valve stem is designed with three "O" ring seal. The friction resistance of the switch can be reduced, water leakage is greatly reduced, and the sealing ring can be replaced without cutting off water.

9.The screw made of aluminum bronze material, so the switch is more smooth, not easy to rust, difficult blockage.

10.The overall of valve adopt non rising stem design, reducing the valve, especially large diameter valve installation space.

11.For the installation of valves using in deep well and underground pipe, deep well connecting cap or lengthening rod mechanism can be provided according to customer requirements.

12.YUMING VALVE company specialized intentions since 1972, has a professional production, sales, research, after-sales team, is your strong backing of sales and use.

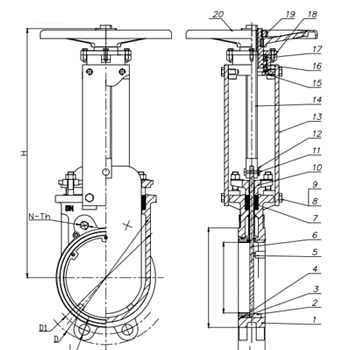

PARAMETER INFORMATION



SIze

DN(MM)

L

D


D1

D2

D0

N-Th

d

H

50

48

152

120

92

180

4--11

19

290

65

48

178

139

105

200

4--11

19

310

80

51

190

152

127

220

4--11

19

350

100

51

220

190

157

240

8--11

19

405

125

57

254

216

186

260

8--10

22

450

150

57

279

241

216

280

8--10

22

510

200

70

343

298

270

300

8--10

22

610

250

70

406

362

324

340

12--9

25

765

300

76

483

432

381

380

12--8

25

820

350

76

533

476

413

400

16--8

29

970

400

89

597

539

470

450

16--8

29

1024

450

89

635

578

533

530

16--8

32

1235
