Full Welding worm gear Ball Valve

  • Size:DN200-DN350
  • Pressure:PN16-PN40
  • Body Materials:20#
  • Ball Materials:SS304
  • Seal Materials:PTFE+25%C
  • Connection:welded

We're here to help:
Easy ways to get the answers you need.

  • Product description
  • Technical parameters
  • Inquiry

Full Welding worm gear Ball Valve

Valve parameters:

Size:DN200-DN350

Pressure:PN16-PN40

Body Materials:20#

Ball Materials:SS304

Seal Materials:PTFE+25%C

Connection:welded

Drive type:worm gear

Structure type:float

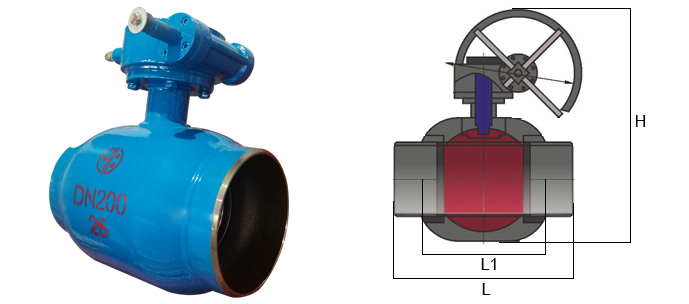

Drawings and dimensions




DN

L

L1

H

DN200

400

Φ273

460

DN250

530

Φ351

550

DN300

550

Φ426

650

DN350

686

Φ508

780

  Application:

City gas: gas output pipes, trunk lines and branch lines;

Heating: large heating equipment output lines, the main line, branch lines;

Heat Exchanger: Pipeline and each circuit open and close;

Steel plants: various fluid pipes, exhaust gas pipelines, gas and heat supply pipelines, fuel supply pipelines;

Industrial equipment: all kinds of heat treatment pipes, all kinds of industrial gas and heat pipe.
