All welded ball valve handle drive

  • Size :DN40-DN150
  • Pressure:PN16-PN40
  • Body Materials:20#
  • Ball Materials:SS304
  • Seal Materials:PTFE+25%C
  • Connection :welded

We're here to help:
Easy ways to get the answers you need.

  • Product description
  • Technical parameters
  • Inquiry

All welded ball valve Handle drive

Valve parameters:

Size:DN40-DN150

Pressure:PN16-PN40

Body Materials:20#

Ball Materials:SS304

Seal Materials:PTFE+25%

Connection:welded

Drive type: handle

Structure type: float

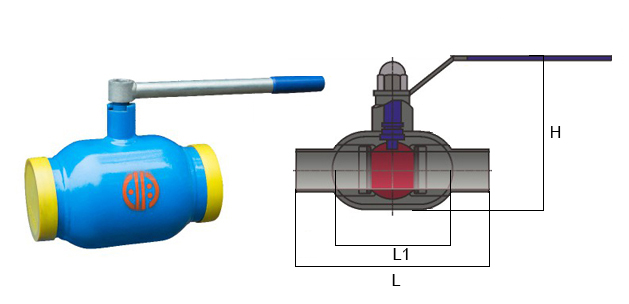

Drawings and dimensions:

DN

L

L1

H

DN40

260

Φ76



DN50

300

Φ86

155

DN65

300

Φ108

185

DN80

300

Φ127

215

DN100

325

Φ152

240

DN125

325

Φ194

290

DN150

350

Φ219

318

  Application:

City gas: gas output pipes, trunk lines and branch lines;

Heating: large heating equipment output lines, the main line, branch lines;

Heat Exchanger: Pipeline and each circuit open and close;

Steel plants: various fluid pipes, exhaust gas pipelines, gas and heat supply pipelines, fuel supply pipelines;

Industrial equipment: all kinds of heat treatment pipes, all kinds of industrial gas and heat pipe.
